2100 mechanical seal fully unitized heavy duty elastomer bellow shaft seal. We design rubber bellow 2100 mechanical seal with the help of premium quality material and the latest technology. With a wide range of rubber bellows mechanical seals, 2100 mechanical seals to meet the performance requirements of any application like Oil Pump, Water & wastewater pumps, Chilling Pump, Submersible pumps, Dewatering Pump, Sewage Pump, Paint & Ink, Pulp & paper industries. We also offer a wide range of mechanical seals to suit all your needs and requirements.
Opening Hours: Monday - Saturday 10 am to 6 pm
- Call Us:
+91-702-16161-39
- Email:
engelite.90@gmail.com

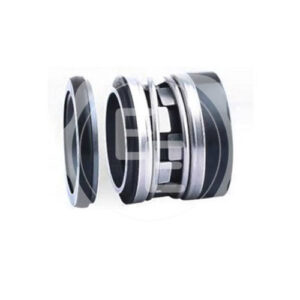

Rubber Bellow Type 2100 Mechanical Seals
Rubber Bellow Type 2100 Mechanical Seals
- Designed for demanding applications
- Single spring elastomer bellows mechanical seal
- It is used For Plain Shaft
- Offers maximum durability and performance.
- The innovative bellows design is pressure-supported
- It is wear type of elastomer spring mechanical seal
- It’s Independent of direction of rotation
- Back-to-back arrangement
- It is comes in various sizes from 10 mm to 100 mm
- Most of use in dirty and congealing application
- They can be specially produced to any working length
- Will not crease or fold under high pressure
- Seal Face: Typically constructed from Carbon/Ceramic/SIC/TC, chosen for its wear resistance and compatibility with the sealed fluid.
- Secondary Sealing Elements: Viton/EPDM/NBR is commonly used for secondary sealing components due to its flexibility and resilience.
- Metal Parts: Constructed from SS-316 / SS-304 for strength and corrosion resistance, enhancing the overall robustness of the mechanical seal.
- Temperature Range: Typically suitable for sealing applications within a temperature range of – 20 ºC to 140 ºC, ensuring compatibility with diverse industrial processes.
- Pressure Rating: Engineered to withstand pressures up to 10 bar to maintain a secure seal under varying operational pressures.
- Rotational Speed: Designed for reliable performance at rotational speeds ranging from 25 m/s, making them versatile for different machinery.
