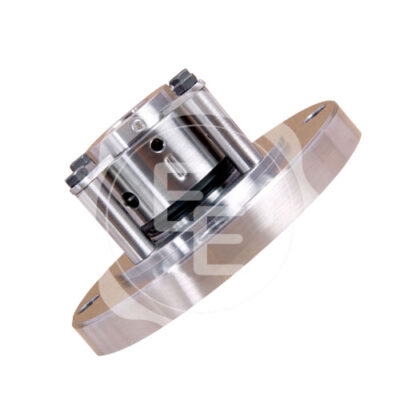

Dry Running Mechanical Seals

Dry Running Mechanical Seals

  • Dry running
  • With or without bearing available
  • Nitrogen pressurized dual seal
  • For top entry drives
  • Friction-locked connection to the shaft
  • For glass-lined vessels acc. to DIN resp. Non-DIN
  • Multiple springs rotating
  • Balanced
  • Independent of direction of rotation
  • Description
  • Material Composition
  • Operation Limits

Dry running mechanical seal is targeted at applications in the chemical, pharmaceutical and food processing industries. This seal is suitable for use in process engineering machineries such as reactors, agitators cartridge, non cartridge or dryers.

Elite Engineering latest technology is allied to the innovative design characteristics of mechanical seals. It will help you to avoid the problem of Dry Running Seals. We provide high quality dry running mechanical seal. They are particularly straightforward to use and uncomplicated to apply in operations.

  • Seal Face: Typically constructed from Carbon/SIC/Graphite, chosen for its wear resistance and compatibility with the sealed fluid.
  • Secondary Sealing Elements:Viton/PTFE/Nitrile is commonly used for secondary sealing components due to its flexibility and resilience.
  • Metal Parts: Constructed from SS-316 for strength and corrosion resistance, enhancing the overall robustness of the mechanical seal.
  • Temperature Range: Typically suitable for sealing applications within a temperature range of – 10 ºC to 150 ºC, ensuring compatibility with diverse industrial processes.
  • Pressure Rating: Engineered to withstand pressures up to 10 bar to maintain a secure seal under varying operational pressures.
  • Rotational Speed: Designed for reliable performance at rotational speeds ranging from 1 m/s, making them versatile for different machinery.
