Single Wave spring seals are designed for bi-directional and work with highly viscous, abrasive media it’s used in dirty applications as spring clogging does not occur. In addition to this, these series are compact in design with reduced axial length. Their compact design makes these seals an excellent choice for confined stuffing box areas or even externally mounted applications.
Opening Hours: Monday - Saturday 10 am to 6 pm
- Call Us:
+91-702-16161-39
- Email:
engelite.90@gmail.com

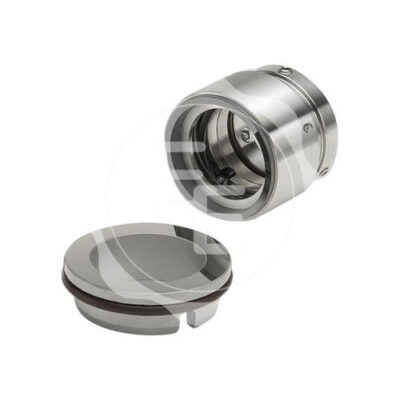

Wave Spring Mechanical Seals
Wave Spring Mechanical Seals
- These seals are widely used in various industries
- The seals are compact in design
- It has reduced axial length
- Easy to install
- designed to handle slurry and dirty application
- No spring clogging occurs
- used in highly corrosive media
- high temperature
- fit for high start-up torque
- unit is independent of transmission of torque
- Seal Face: Typically constructed from Carbon/SIC/TC, chosen for its wear resistance and compatibility with the sealed fluid.
- Secondary Sealing Elements:Viton/PTFE/EPDM is commonly used for secondary sealing components due to its flexibility and resilience.
- Metal Parts: Constructed from SS-316 / Alloy 20 for strength and corrosion resistance, enhancing the overall robustness of the mechanical seal.
- Temperature Range: Typically suitable for sealing applications within a temperature range of – 20 ºC to 200 ºC, ensuring compatibility with diverse industrial processes.
- Pressure Rating: Engineered to withstand pressures up to 10 bar to maintain a secure seal under varying operational pressures.
- Rotational Speed: Designed for reliable performance at rotational speeds ranging from 6000 RPM, making them versatile for different machinery.
