Agitators mechanical seal can come in many sizes and varieties, depending on the application. The mechanical seal acts as a stopper from process to atmosphere and seals leaks on parts of agitators, mixers, and vessels. This is because we use only raw materials of the highest quality and selected components. We manufacture agitator shaft seal of high quality raw materials available With/without bearing, are easily configurable to ensure seamless integration into your processes.
Opening Hours: Monday - Saturday 10 am to 6 pm
- Call Us:
+91-702-16161-39
- Email:
engelite.90@gmail.com

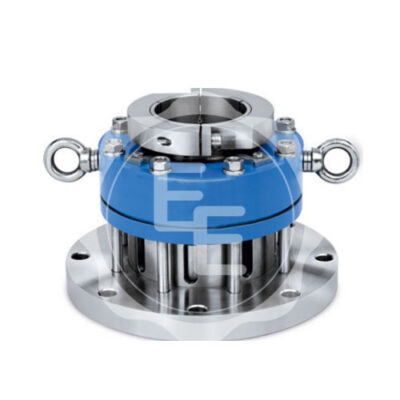

Agitator Mechanical Seals
Agitator Mechanical Seals
- Single O-ring mixer seal for top entry vessels.
- Preassembled, preset double cartridge seal for easy installation;
- Can withstand extreme shaft run-out;
- Outside-mounted, dual-balanced design.
- Springs are isolated from product to prevent clogging;
- Non-fretting static 0-ring eliminates shaft wear;
- Reverse pressure design (applied for high pressure and vacuum).
- Robust T-bar drive mechanism for high-torque transmission.
- No minimum stuffing box requirements;
- Closed loop flush system prevents contamination of product;
- Pressure tested at factory before shipment;
- No external lubrication required.
- Mechanical wear indication.
- Standard sizes from 25mm to 125mm shaft diameter.
- Seal Face: Typically constructed from FDA/SIC, chosen for its wear resistance and compatibility with the sealed fluid.
- Secondary Sealing Elements: PTFE,FFKM is commonly used for secondary sealing components due to its flexibility and resilience.
- Metal Parts: Constructed from SS-316 for strength and corrosion resistance, enhancing the overall robustness of the mechanical seal.
- Temperature Range: Typically suitable for sealing applications within a temperature range of – 30 ºC to 260 ºC, ensuring compatibility with diverse industrial processes.
- Pressure Rating: Engineered to withstand pressures up to 30 bar to maintain a secure seal under varying operational pressures.
- Rotational Speed: Designed for reliable performance at rotational speeds ranging from 400 RPM, making them versatile for different machinery.
